供應ZXC手動自卸灰斗車后開門款綠色、環保、節能

建筑工地電動三輪自卸車是集綠色、環保及節能為一體的新型產品.

工程電動三輪車技術性能：本車采用48-60V 45-60A電瓶為動力，并配備直流電動機，

加上的科學技術使其輸出動力10-12馬力，如果和柴油機相比月節省燃油費600-800

元。

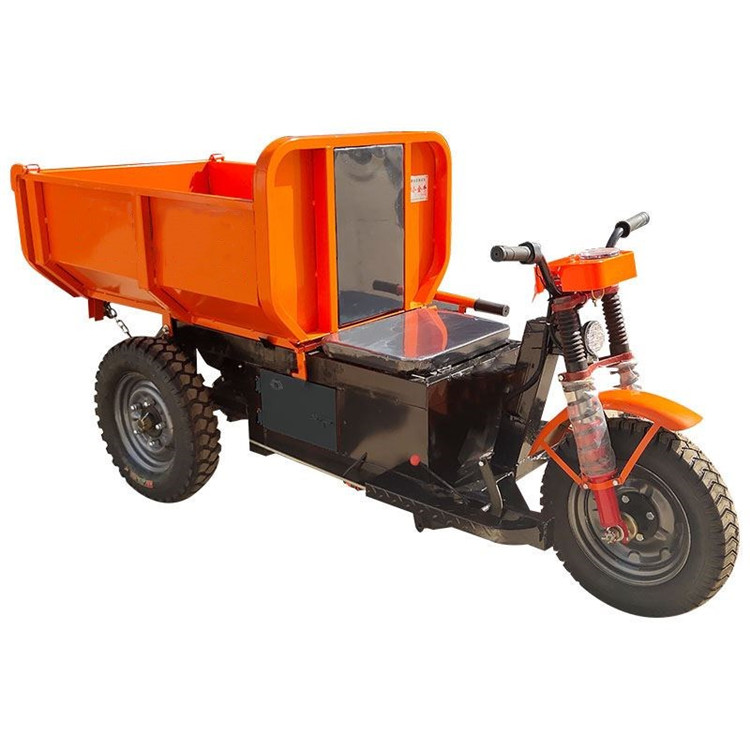

Construction Site Electric three-wheeled dump truck is a green,

environmental protection and energy-saving as one of the new products.

Engineering three-wheeler: The car is powered by a 48-60V 45-60A battery and

is equipped with DC motor, which, coupled with advanced technology, produces

10-12 horsepower, saving 600-800 yuan a month in fuel costs compared with

diesel engines.

我廠生產的電動翻斗車，電動三輪自卸車采用大容量鉛酸蓄電池為電力來源，采用直流

串勵式大功率電機為動力，采用變速箱為傳動裝置，內置渦輪增壓裝置，正常使用不易

損壞。充一次電可以跑80-120公里，載重量從1噸，2噸到3噸，完全滿足礦山運送物料

要求，還可根據客戶的實際需要由為您定制。

The electric dump truck and the electric three-wheel dump truck manufactured

by our factory are powered by a large capacity Lead acid battery, driven by

a DC series-excited high-power motor, driven by a gearbox and equipped with

a built-in turbocharger, it is not easy to be damaged in normal use. One

charge can run 80-120 kilometers, carrying capacity from 1 ton, 2 tons to 3

tons, fully meet the mine transport material requirements, but also

according to the actual needs of customers customized by experts for you.

建筑工程搬運車參數：

手動款

車子總廠2.33米  斗子寬80公分 長1.2米  電瓶45安 48V  重量310公斤

自卸款

斗子寬90公分 長1.4米

工地電動三輪車特點：

　　1.能耗：無噪音、、率、低能耗，同時具有改善勞動強度降低用工成本

，適用性強。

　　2.配置：采用電子電量顯示表、電瓶、大功率、電機性能可靠穩定。

　　3.控制系統：采用無級變速，手把油門控制，剎車斷電保護裝置，手把轉向，轉彎

半徑小，操作簡單，一次充電可工作兩個工作日。

4.設計：后橋設計、行星差速、雙級減速、加大齒輪設計雙鏈條傳動，使動力輸出穩定

性能可靠，使用壽命更長。

Site three-wheeler features: 1. Energy consumption: no noise, no pollution,

high efficiency, low energy consumption, and has improved labor intensity to

reduce labor costs, strong applicability. 2. CONFIGURATION: adopt electronic

quantity display meter, special battery, high power, reliable and stable

performance of motor. 3. Control System: stepless speed change, manual

throttle control, brake power off protection device, handlebar steering,

turning radius is small, easy to operate, a charge can work for two working

days. 4. DESIGN: Rear axle design, planetary differential, double reduction,

gear design, double chain transmission, so that the power output stability

and reliable, longer service life.
